تغيير إعدادات الشاشة برمجيا

BOOL EnumDisplaySettings(
  LPCTSTR lpszDeviceName,  // display device
  DWORD iModeNum,          // graphics mode
  [In, Out] LPDEVMODE lpDevMode      // graphics mode settings
);

typedef struct DEVMODE {
  BCHAR  dmDeviceName[CCHDEVICENAME];
  WORD   dmSpecVersion;
  WORD   dmDriverVersion;
  WORD   dmSize;
  WORD   dmDriverExtra;
  DWORD  dmFields;
  union {
    struct {
      short dmOrientation;
      short dmPaperSize;
      short dmPaperLength;
      short dmPaperWidth;
      short dmScale;
      short dmCopies;
      short dmDefaultSource;
      short dmPrintQuality;
    };
    POINTL dmPosition;
    DWORD  dmDisplayOrientation;
    DWORD  dmDisplayFixedOutput;
  };

  short  dmColor;
  short  dmDuplex;
  short  dmYResolution;
  short  dmTTOption;
  short  dmCollate;
  BYTE  dmFormName[CCHFORMNAME];
  WORD  dmLogPixels;
  DWORD  dmBitsPerPel;
  DWORD  dmPelsWidth;
  DWORD  dmPelsHeight;
  union {
    DWORD  dmDisplayFlags;
    DWORD  dmNup;
  }
  DWORD  dmDisplayFrequency;
#if(WINVER >= 0x0400)
  DWORD  dmICMMethod;
  DWORD  dmICMIntent;
  DWORD  dmMediaType;
  DWORD  dmDitherType;
  DWORD  dmReserved1;
  DWORD  dmReserved2;
#if (WINVER >= 0x0500) || (_WIN32_WINNT >= 0x0400)
  DWORD  dmPanningWidth;
  DWORD  dmPanningHeight;
#endif
#endif /* WINVER >= 0x0400 */
}

    [DllImport("User32.dll")]
    [return: MarshalAs(UnmanagedType.Bool)]
    public static extern Boolean EnumDisplaySettings(
        [param: MarshalAs(UnmanagedType.LPTStr)]
        string lpszDeviceName,
        [param: MarshalAs(UnmanagedType.U4)]
        int iModeNum,
        [In, Out]
        ref DEVMODE lpDevMode);

    [StructLayout(LayoutKind.Sequential, CharSet = CharSet.Ansi)]
    public struct DEVMODE
    {
        // You can define the following constant
        // but OUTSIDE the structure because you know
        // that size and layout of the structure is very important
        // CCHDEVICENAME = 32 = 0x50
        [MarshalAs(UnmanagedType.ByValTStr, SizeConst = 32)]
        public string dmDeviceName;
        // In addition you can define the last character array
        // as following:
        //[MarshalAs(UnmanagedType.ByValArray, SizeConst = 32)]
        //public Char[] dmDeviceName;

        // After the 32-bytes array
        [MarshalAs(UnmanagedType.U2)]
        public UInt16 dmSpecVersion;

        [MarshalAs(UnmanagedType.U2)]
        public UInt16 dmDriverVersion;

        [MarshalAs(UnmanagedType.U2)]
        public UInt16 dmSize;

        [MarshalAs(UnmanagedType.U2)]
        public UInt16 dmDriverExtra;

        [MarshalAs(UnmanagedType.U4)]
        public UInt32 dmFields;

        public POINTL dmPosition;

        [MarshalAs(UnmanagedType.U4)]
        public UInt32 dmDisplayOrientation;

        [MarshalAs(UnmanagedType.U4)]
        public UInt32 dmDisplayFixedOutput;

        [MarshalAs(UnmanagedType.I2)]
        public Int16 dmColor;

        [MarshalAs(UnmanagedType.I2)]
        public Int16 dmDuplex;

        [MarshalAs(UnmanagedType.I2)]
        public Int16 dmYResolution;

        [MarshalAs(UnmanagedType.I2)]
        public Int16 dmTTOption;

        [MarshalAs(UnmanagedType.I2)]
        public Int16 dmCollate;

        // CCHDEVICENAME = 32 = 0x50
        [MarshalAs(UnmanagedType.ByValTStr, SizeConst = 32)]
        public string dmFormName;
        // Also can be defined as
        //[MarshalAs(UnmanagedType.ByValArray,
        //    SizeConst = 32, ArraySubType = UnmanagedType.U1)]
        //public Byte[] dmFormName;

        [MarshalAs(UnmanagedType.U2)]
        public UInt16 dmLogPixels;

        [MarshalAs(UnmanagedType.U4)]
        public UInt32 dmBitsPerPel;

        [MarshalAs(UnmanagedType.U4)]
        public UInt32 dmPelsWidth;

        [MarshalAs(UnmanagedType.U4)]
        public UInt32 dmPelsHeight;

        [MarshalAs(UnmanagedType.U4)]
        public UInt32 dmDisplayFlags;

        [MarshalAs(UnmanagedType.U4)]
        public UInt32 dmDisplayFrequency;

        [MarshalAs(UnmanagedType.U4)]
        public UInt32 dmICMMethod;

        [MarshalAs(UnmanagedType.U4)]
        public UInt32 dmICMIntent;

        [MarshalAs(UnmanagedType.U4)]
        public UInt32 dmMediaType;

        [MarshalAs(UnmanagedType.U4)]
        public UInt32 dmDitherType;

        [MarshalAs(UnmanagedType.U4)]
        public UInt32 dmReserved1;

        [MarshalAs(UnmanagedType.U4)]
        public UInt32 dmReserved2;

        [MarshalAs(UnmanagedType.U4)]
        public UInt32 dmPanningWidth;

        [MarshalAs(UnmanagedType.U4)]
        public UInt32 dmPanningHeight;
    }
    [StructLayout(LayoutKind.Sequential)]
    public struct POINTL
    {
        [MarshalAs(UnmanagedType.I4)]
        public int x;
        [MarshalAs(UnmanagedType.I4)]
        public int y;
    }

public static void GetCurrentSettings()
{
    DEVMODE mode = new DEVMODE();
    mode.dmSize = (ushort)Marshal.SizeOf(mode);

    if (EnumDisplaySettings(null, -1, ref mode) == true) // Succeeded
    {
        Console.WriteLine("Current Mode:nt" +
            "{0} by {1}, " +
            "{2} bit, " +
            "{3} degrees, " +
            "{4} hertz",
            mode.dmPelsWidth,
            mode.dmPelsHeight,
            mode.dmBitsPerPel,
            mode.dmDisplayOrientation * 90,
            mode.dmDisplayFrequency);
    }
}

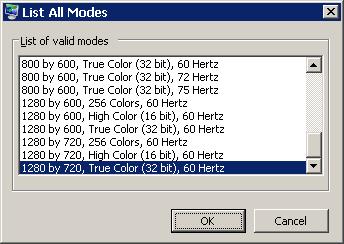

public static void EnumerateSupportedModes()
{
    DEVMODE mode = new DEVMODE();
    mode.dmSize = (ushort)Marshal.SizeOf(mode);

    int modeIndex = 0; // 0 = The first mode

    Console.WriteLine("Supported Modes:");

    while (EnumDisplaySettings(null,
        modeIndex,
        ref mode) == true) // Mode found
    {
        Console.WriteLine("t" +
            "{0} by {1}, " +
            "{2} bit, " +
            "{3} degrees, " +
            "{4} hertz",
            mode.dmPelsWidth,
            mode.dmPelsHeight,
            mode.dmBitsPerPel,
            mode.dmDisplayOrientation * 90,
            mode.dmDisplayFrequency);

        modeIndex++; // The next mode
    }
}

LONG ChangeDisplaySettings(
  LPDEVMODE lpDevMode,  // graphics mode
  DWORD dwflags         // graphics mode options
);

    [DllImport("User32.dll")]
    [return: MarshalAs(UnmanagedType.I4)]
    public static extern int ChangeDisplaySettings(
        [In, Out]
        ref DEVMODE lpDevMode,
        [param: MarshalAs(UnmanagedType.U4)]
        uint dwflags);

const int DISP_CHANGE_SUCCESSFUL = 0;
const int DISP_CHANGE_RESTART = 1;
const int DISP_CHANGE_FAILED = -1;
const int DISP_CHANGE_BADMODE = -2;

static void Main()
{
    // Changing the display resolution
    // to 800 by 600
    // and the color system (bit count)
    // to 16-bit
    ChangeDisplaySettings(800, 600, 16);
}

public static void ChangeDisplaySettings(int width, int height, int bitCount)
{
    DEVMODE originalMode = new DEVMODE();
    originalMode.dmSize = (ushort)Marshal.SizeOf(originalMode);

    // Retrieving current settings
    // to edit them
    EnumDisplaySettings(null, ENUM_CURRENT_SETTINGS, ref originalMode);

    // Making a copy of the current settings
    // to allow reseting to the original mode
    DEVMODE newMode = originalMode;

    // Changing the settings
    newMode.dmPelsWidth = (uint)width;
    newMode.dmPelsHeight = (uint)height;
    newMode.dmBitsPerPel = (uint)bitCount;

    // Capturing the operation result
    int result = ChangeDisplaySettings(ref newMode, 0);

    if (result == DISP_CHANGE_SUCCESSFUL)
    {
        Console.WriteLine("Succeeded.n");

        // Inspecting the new mode
        GetCurrentSettings();

        Console.WriteLine();

        // Waiting for seeing the results
        Console.ReadKey(true);

        ChangeDisplaySettings(ref originalMode, 0);
    }
    else if (result == DISP_CHANGE_BADMODE)
        Console.WriteLine("Mode not supported.");
    else if (result == DISP_CHANGE_RESTART)
        Console.WriteLine("Restart required.");
    else
        Console.WriteLine("Failed. Error code = {0}", result);
}

    static void Main()
    {
        // 0 degrees ( DMDO_DEFAULT = 0 )

        Console.WriteLine("Press any key to rotate the screen . . .");
        Console.ReadKey(true);
        Console.WriteLine();

        RotateScreen(true); // 90 degrees (	DMDO_90 = 1 )
        Console.WriteLine ("Press any key to rotate the screen . . .");
        Console.ReadKey(true);
        Console.WriteLine();

        RotateScreen(true); // 180 degrees ( DMDO_180 = 2 )
        Console.WriteLine("Press any key to rotate the screen . . .");
        Console.ReadKey(true);
        Console.WriteLine();

        RotateScreen(true); // 270 degrees ( DMDO_270 = 3 )
        Console.WriteLine("Press any key to rotate the screen . . .");
        Console.ReadKey(true);
        Console.WriteLine();

        RotateScreen(true); // 0 degrees ( DMDO_DEFAULT = 0 )
    }

    public static void RotateScreen(bool clockwise)
    {
        // Retrieving current settings
        // ...

        // Rotating the screen
        if (clockwise)
            if (newMode.dmDisplayOrientation  DMDO_DEFAULT)
                newMode.dmDisplayOrientation--;
            else
                newMode.dmDisplayOrientation = DMDO_270;

        // Swapping width and height;
        uint temp = newMode.dmPelsWidth;
        newMode.dmPelsWidth = newMode.dmPelsHeight;
        newMode.dmPelsHeight = temp;

        // Capturing the operation result
        // ...
    }
